PRODOTTI

Back To Products BACK
AIVUSWI04P2

DESCRIZIONE GENERALE

UTEPO

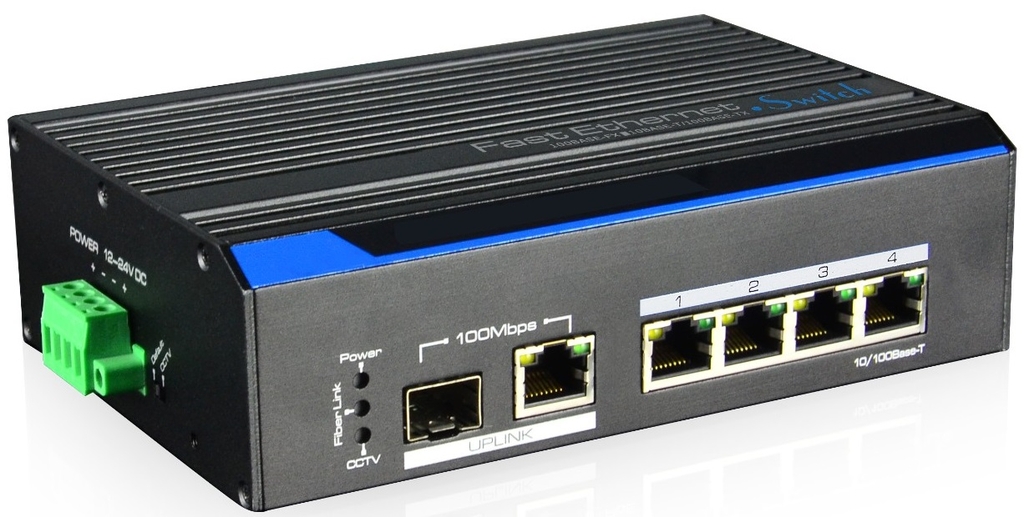

SWITCH ETHERNET INDUSTRIALE LUNGA DISTANZA (FINO A 250 METRI) 4+2. 4 PORTE
POE+ 60W (120W OPZ.) 10/100M. 1 PORTA UPLINK 10/100M. 1 PORTA UPLINK
10/100M FIBRA.

SCHEDA TECNICA

Codice

AIVUSWI04P2

Tipo

Switch industriale DIN

Alimentazione

44-57Vcc (alimentatore esterno)

Consumo

Potenza totale PoE+ max 60W (120W opz.)

Velocità porte

4 porte Dwnlk PoE 10/100Mbps + 1 porta Uplk 10/100Mbps 1 porta

Distanza trasmissione

4 Porte Dwnlk 150m / 1 Porta Uplk 100m

Standard Ethernet

IEEE 802.3 10; 802.3u; 802.3x; 802.3af/at

Modalità switch

Store and forward

Buffer pacchetti

512k

Indirizzi MAC

2k

Led alimentazione

1 rosso

Led porte uplink

Fibra Verde ON / Eth Verde ON / Eth Giallo link 10/100

Led porte downlink

Giallo PoE / Verde link

Pulsanti reset

4 pulsanti reset PoE / 1 pulsante reset switch

Standard protezione

IEC61000-4-2 ESD 6KV contact discharge 8KV air discharge IEC61000-4-5

Temperatura

Operativa -40° a 75°C / Stoccaggio -40 a 85°C

Umidità

Non condensata 0-95%

Spettro

159x110x46mm

Peso

530g

MTBF

30000h

Certificazioni

CE, RoHS, FCC

DOWNLOADS

Manuale AIVUSWI04P2
